Copper Foil Winding Machine Wind Foil Max 1000mm Width 0.2-3.0mm Thickness

Description of copper foil winding machine BRJ1000-2

Copper foil winding machine BRJ1000-2 is one of special equipment for winding conductor foil, which is mainly for making cast resin transformer’s coils and other similar products. The foil thickness of the copper foil winding machine can wind is from 0.2 mm to 3.0mm and the maximum foil width is 1000mm. The copper foil winding machine is provided with two foil decoilers and two insulation decoilers, which makes the winding machine can wind one or two layers of foil conductor and one or two layers of insulation paper. The control panel houses the user interface and control mechanisms for operating the machine. It allows operators to set various parameters such as winding speed, tension, and layering patterns. The copper foil winding machine features easy operation and so on.

Main components of copper foil winding machine BRJ1000-2

• Main frame
• Winding unit
• Foil decoiler
• Insulation decoiler
• End-fill strip feeder
• Foil deburring system
• Edge alignment system
• Automatic welding unit

Technical parameters of copper foil winding machine BRJ1000-2

Typical standard specifications of copper foil winding machine BRJ1000-2 are shown below, however, the winding machine can also be manufactured as requested.

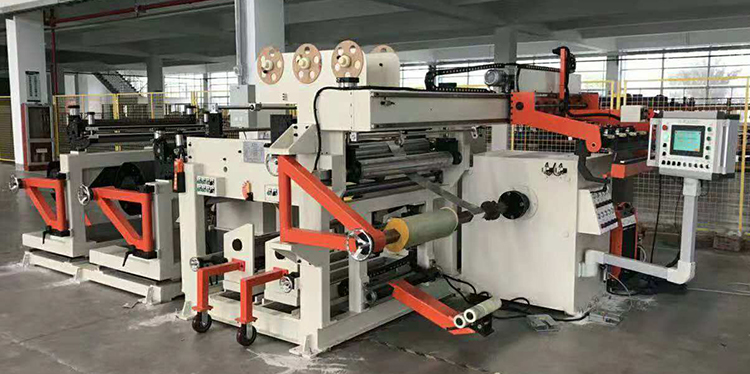

Fig 1: Copper foil winding machine BRJ1000-2's front view

Fig 2: Copper foil winding machine BRJ1000-2's welding unit
