Factory Direct Sales Automatic PLC Control Transformer Coil Winding Machine

Description of transformer coil winding machine ZPX150-3

Transformer coil winding machine is a special winding equipment for winding wires to make transformer coils and other similar products. With three wire guides, the transformer coil winding machine ZPX150-3 can be used to wind three coils at once and the maximum height of each coil is 150mm, which significantly improve production effectiveness. The transformer coil winding machine is provided with PLC control system, wire guide, touch screen and so on. The transformer coil winding machine features high effective, slow starting, smooth running, high automation and so on.

Quick details of transformer coil winding machine ZPX150-3

• Winding copper or aluminium wire
• Three wire guides
• Winding width 150mm
• Winding three coils at one time
• Winding power 4kw
• Customized color

Technical parameters of transformer coil winding machine ZPX150-3

Typical standard specifications of ZPX150-3 are shown below, however these can be easily modified as requested.

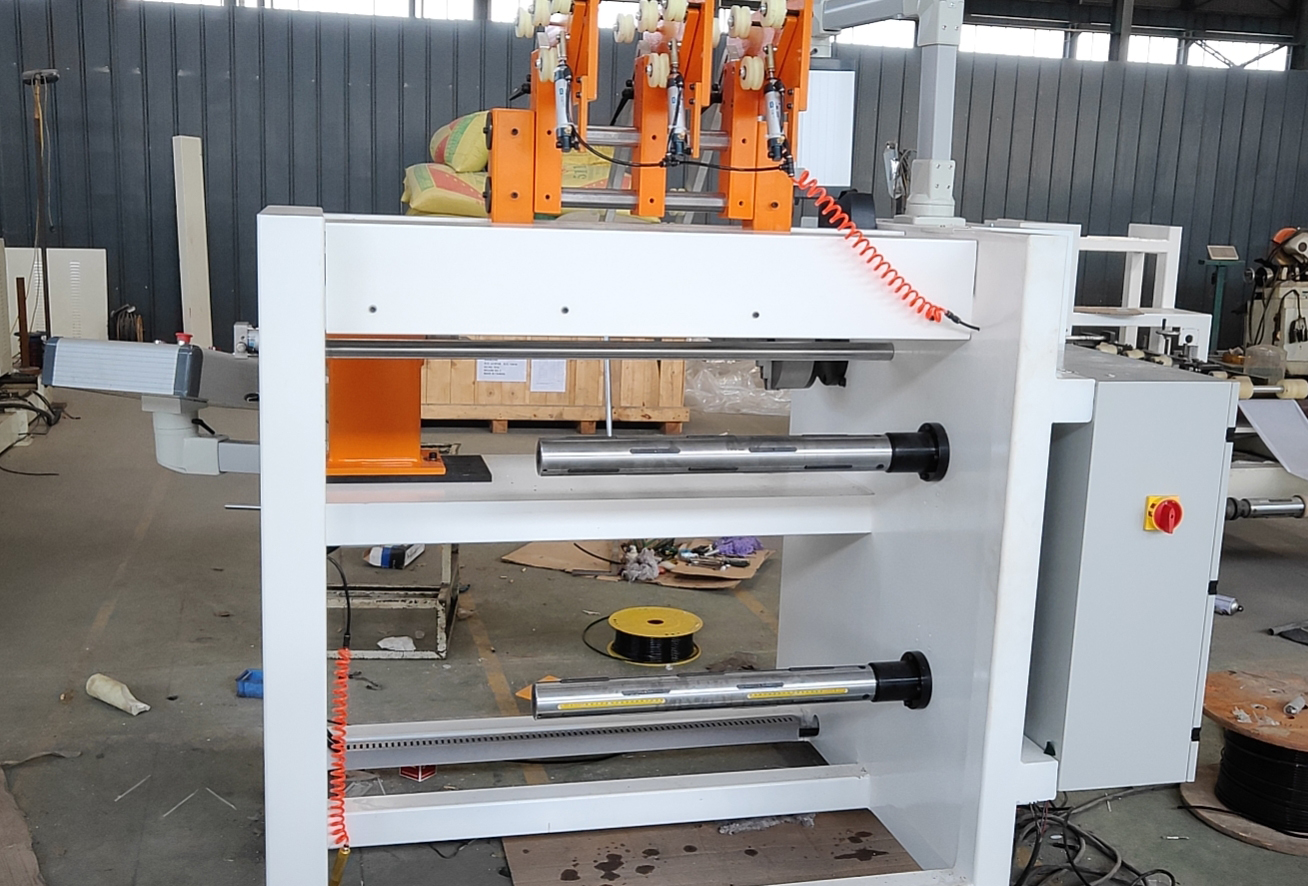

Fig 1: Transformer coil winding machine ZPX150-3's full view

Fig 2:Transformer coil winding machine ZPX150-3's back view
