Automatic Reactor Copper Foil Winding Machine Sheet Winder

Ask Lasest Price
Brand Name :	STT
Model Number :	BRJ600-2-2
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets per year
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

Automatic Reactor Copper Foil Winding Machine Sheet Winder

Factory Direct Sales Sheet Winder Reactor Copper Foil Winding Machine

Description of copper foil winding machine BRJ600-2-2

Copper foil winding machine BRJ600-2-2 is a professional equipment for winding foils onto reactor cores directly. This kind of copper foil winding machine can wind both copper foil and aluminium foil . One iron core is clamped by two chucks of the copper foil winding machine and the two chucks are driven by two motors separately, which guarantees the the same torque when winding. The copper foil winding machine’s control system is based on PLC. The copper foil winding machine features easy operation, high automation and so on.

Quick details of copper foil winding machine BRJ600-2-2

Two servo motors driving
Two chucks clamping iron core
Foil material ID 500mm
Maximum foil material OD 1000mm
Maximum winding speed 26rpm
Winding power 11kw
TIG welding
Customized color

Technical parameters of copper foil winding machine BRJ600-2-2

Typical standard specifications of BRJ600-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

Foil width:	250 ~ 600mm
Max. Finished Coil OD.:	800mm
Conductor Strip Material:	Copper or Aluminum
Al Strip Thickness:	0.3 ~ 3.0 mm
Cu Strip Thickness:	0.2 ~ 2.0 mm
Foil Decoiler Number:	2 pcs
Foil Decoiler Length:	650mm
Foil Decoiler Expanding Range:	Ø420 ~ 520mm
Max. Coil Weight:	1,000KG
Motor Power:	11kw
Max. Winding Speed:	26 rpm
Welding System:	TIG
Insulation Decoiler Number:	2 pcs
Insulation Decoiler Width:	650mm
Insulation Decoiler Shaft:	pneumatic open/close action
Edge Alignment System:	Photoelectric sensing
Control System:	PLC
User interface:	10 inches (254mm) touch screen
Counting Range:	0 ~ 9999.9

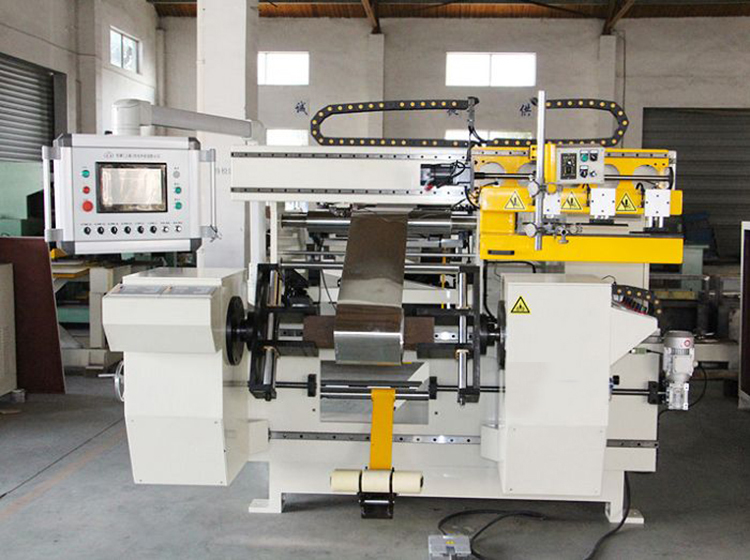

Fig 1: Copper foil winding machine BRJ600-2-2's front view

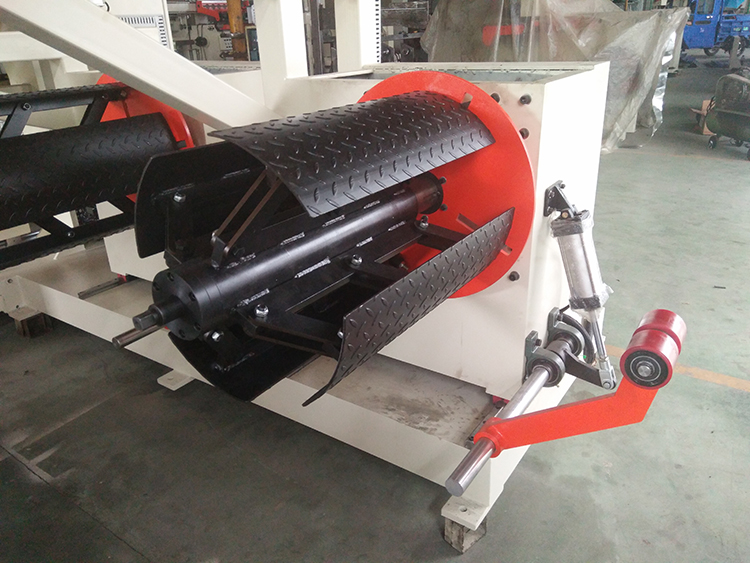

Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler
