Automatic Cold Pressure Welding Foil Winder Dry Transformer Foil Winding Machine

Description of transformer foil winding machine BRJ300-2

Transformer foil winding machine BRJ300-2 is a special foil winder, which is mainly used to wind foil conductor, i.e. copper foil and aluminium foil to make foil coils. This kind of foil coils can be used in transformer and other similar products. The model of transformer foil winding machine, BRJ300-2, can wind copper or aluminium foil with max width 300mm. The transformer foil winding machine can handle one or two layers of foil and one or two layers of insulation paper. The transformer foil winding machine’s control system is based on PLC, which can make the machine run automatically as per the parameters input. With HMI and PLC, the transformer foil winding machine can be operated very easily.

Quick details of transformer foil winding machine BRJ300-2

• Maximum foil width 300mm
• Foil material ID 500mm
• Foil material OD 1000mm
• Winding speed 35rpm
• Winding power 5.5kw
• Automatic cold welding
• Two foil decoilers
• One year warranty

Technical parameters of transformer foil winding machine BRJ300-2

Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below, however, the foil winding machine can also be manufactured as requested.

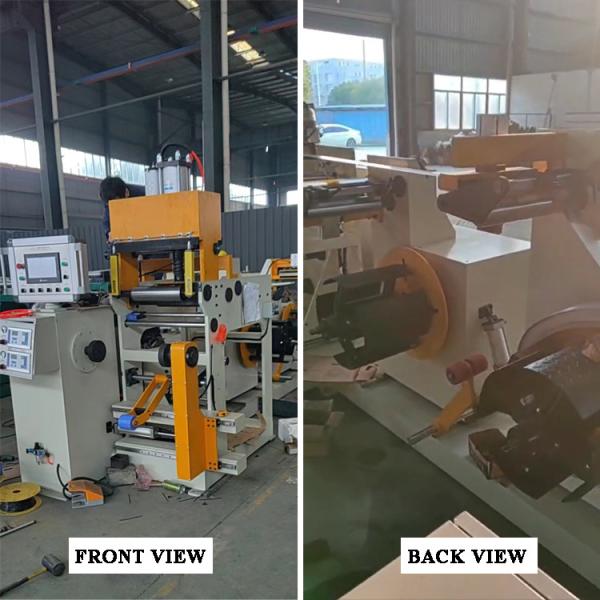

Fig 1: Transformer foil winding machine BRJ300-2's full view

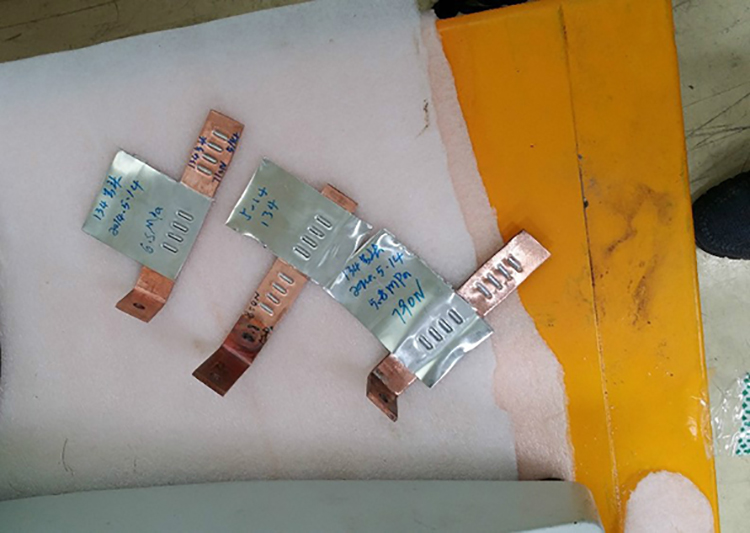

Fig 2: Transformer foil winding machine BRJ300-2's welding effect
