7.5kw Automatic Coil Winding Machine High Effective Electric Wire Winder

High Effective Electric Wire Winder Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX500-2

Automatic coil winding machine ZPX500-2 is one kind of high efficiency wire coil winders. With two wire guides, the kind of automatic coil winding machine can wind two coils at once, which greatly improves production efficiency. With servo motor driving wire guides, the automatic coil winding machine can lay the wires precisely. The automatic coil winding machine is with a control system based on PLC, which make the coil winding machine high automation. It is easy to operate the coil winding machine.

Main Features of automatic coil winding machine ZPX500-2

Automatic coil winding machine ZPX500-2 is provided with a 7.5kw motor, which provides strong pulling force.The automatic coil machine features slow starting, smooth running, full function, high automation, etc.

Main Parameters of automatic coil winding machine

Typical standard specifications of automatic coil winding machine ZPX500-2 are shown below, however these can be easily modified as requested.

Center Height From Floor:	900mm
Finished Coil Number Max:	2 pcs
Max. Each Coil Height:	500mm
Rotating Shaft Length:	1200mm
Flat Wire Size:	5x12mm
Round Wire Diameter:	Ø0.3 ~ 5.0mm
Maximum Flat Wire:
Max. Rotating OD.:	800mm
Winding Speed:	0 ~ 160RPM
Speed Regulation:	stepless speed regulation
Winding Power:	7.5KW
Spread Pitch min:	0.01mm
Counting Mode:	5-digit counting
Max. Turns Number Preset:	9999.9
Counting Range:	0 - 9999.9

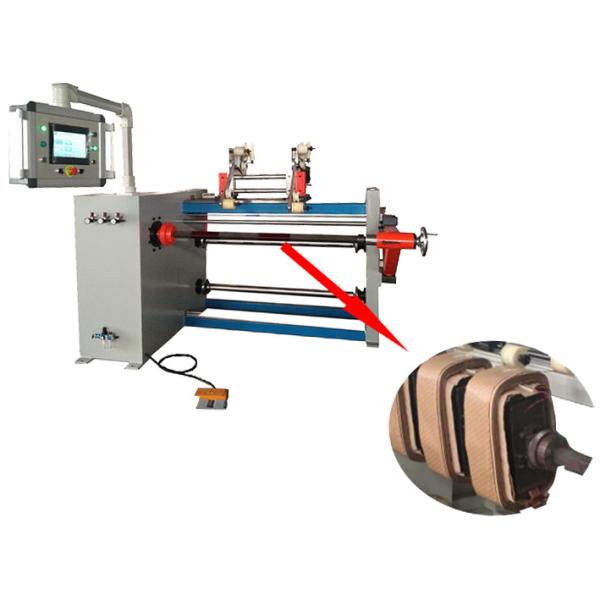

Fig 1: Automatic coil winding machine ZPX500-2's front view

Fig 2: Automatic coil winding machine ZPX500-2's wire guide
