Core Slitting Machine Accurate Slitting Electrical Steel Coils Silicon Steel Sheet Slitter


Description of core slitting machine ZJX1250

Core slitting machine is a professional slitter to slit silicon steel to make different width strips. This kind of core slitting machine is used to slit and divide electrical steel coils into narrow strips and the strips can be cut again to make transformer cores’ legs or yokes. The core slitting machine adopts precise cutting techniques to slit the electrical steel coils into desired widths. The core slitting machine can slit different coils with various sizes and thicknesses, ensuring flexibility in the production process. The core slitting machine is usually provided with six sets of cutters, which can slit five strips at the same time. After adding more cutters, the slitter can slit more strips at once. The core slitting machine features high automation, easy operation and so on.


Quick details of core slitting machine ZJX1250

• Decoiler expanding range Ø470 ~ 520mm
• Sheet width 500 ~ 1250 mm
• Sheet thickness 0.15 ~ 0.6mm
• 6 sets of cutters
• Feeding speed 120m/min
• Motor power 46kw

Main components of core slitting machine ZJX1250

1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Winder

7. Hydraulic station and pneumatic system

8. Electrical control cabinet and console

Main parameters of core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the core slitting machine can also be manufactured as requested.

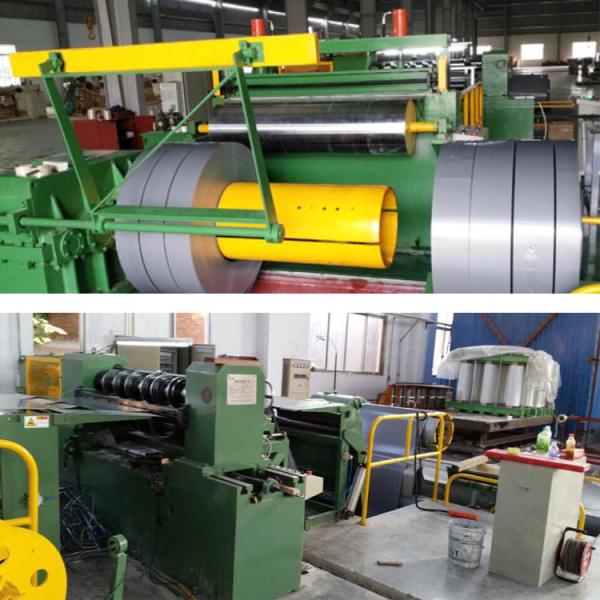

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
