Programmable HV Winder Automatic Coil Winding Machine

Ask Lasest Price
Brand Name :	STT
Model Number :	ZPX600-2
Certification :	CE, etc
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets per year
Delivery Time :	35 days

Add to Cart

Product Details
Company Profile

Programmable HV Winder Automatic Coil Winding Machine

Programmable HV Winder Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX600-2

Automatic Coil winding machine ZPX600-2, adopting automatic wire laying and tension technologies, is especially suitable for winding different kinds of coils. The coils can be used in transformers and other similar products. The machine is provided with main winding motor, automatic wire laying unit, insulation decoiler, coil stand, pneumatic system, PLC based control system, and servo motors, etc. It features high automation, full functions, and strong driving force, etc. This machine can wind 2 same coils at once.

Technical parameters of automatic coil winding machine ZPX600-2

Typical standard specifications of ZPX600-2 are shown below, and the automatic coil winding machine can also be manufactured as requested.

Centre height:	1000mm
Paper decoiler	2 pcs
Coil number:possible	2 pcs
Each coil height max.:	600mm
Wire dereeler:	2 pcs
Flat wire size:	5x12mm
Round wire diameter:	0.3 ~ 5.0mm
Max. coil OD.:	1200mm
Max. coil weight:	1200kg
Winding shaft size:	50x50x1600mm
Winding speed:	0 ~ 150RPM
Speed regulation:	Variable frequency and stepless speed regulation
Motor power:	11kw
Automatic wire laying:	Diameter of wire adjustable, Min. step: 0.01mm
Counting mode:	5-digit counting
Counting range:	0 ~ 9999.9

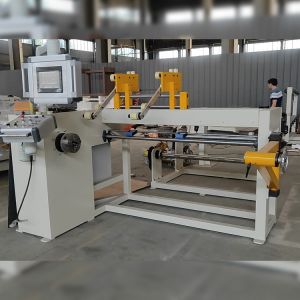

Fig 1: Automatic coil winding machine ZPX600-2's front view

Fig 2: Automatic coil winding machine ZPX600-2's back view
