Factory Direct Selling Copper Wire Winder Electric Motor Coil Winding Machine

Description of motor coil winding machine MW150

Motor coil winding machine MW150 is a special wire coil winder for winding motor coils and other similar products. The motor coil winding machine can be used to wind different specifications of copper wires or aluminium wires to make motor coils or other similar products. The motor coil winding machine is provided with main winding motor, flange with diameter 150mm, foot pedal, counter, control board, gear box, and electrical cabinet. The winding fixture can be mounted on the flange. The foot pedal can be used to switch the winding direction. The motor coil winding machine features strong force, high winding speed and easy to operate.

Quick details of motor coil winding machine MW150

• Slow starting
• Smooth running
• Strong pulling force
• High speed
• Simply structure
• Easy operating

Main parameters of motor coil winding machine MW150

Typical standard specifications of motor coil winding machine MW150 are shown below, however, the winding machine can also be manufactured as requested.

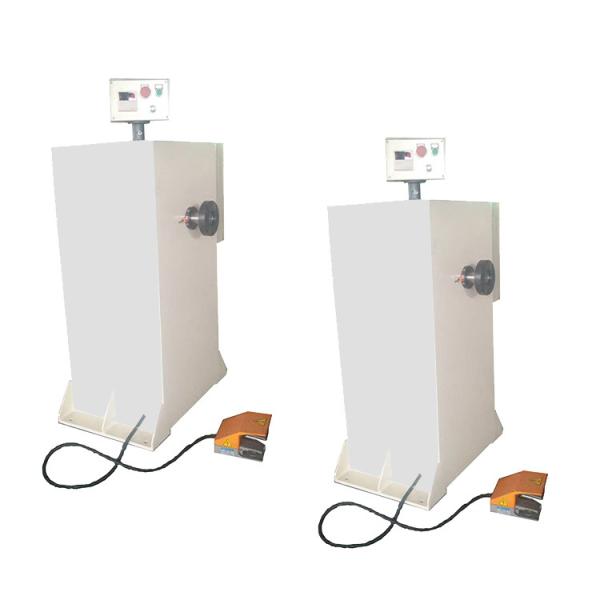

Fig 1: Motor coil winding machine MW150's full view

Fig 2: Motor coil winding machine MW150's control board
