Description of transformer coil winding machine GDY-1T

Transformer coil winding machine GDY-1T is one kind of semi automatic wire winders. The transformer coil winding machine is for winding different specifications of coils and the coils can be used to make transformers and other similar products.

With the digital counter, the transformer coil winding machine can show the number of turns when winding. When reaching the total number of turns preset, the transformer coil winding machine will stop automatically. Even though there is a sudden power failure, the counting record and the parameters input can be saved. The winding speed of the transformer coil winding machine can be adjusted stepless through a potentiometer on the board. The rotating direction (forward/reverse) of the transformer coil winding machine can be switched through the foot pedal.

Quick details of transformer coil winding machine GDY-1T

• Winding copper or aluminium wire
• Winding width 1000mm
• Maximum capacity 1000kg
• Winding power 3kw
• Winding shaft size 40x40x1200mm
• Two speed gear

Specifications of transformer coil winding machine GDY-1T

Typical standard specifications of coil winding machine GDY-1T are shown below, however, the coil winding machine can also be manufactured as requested.

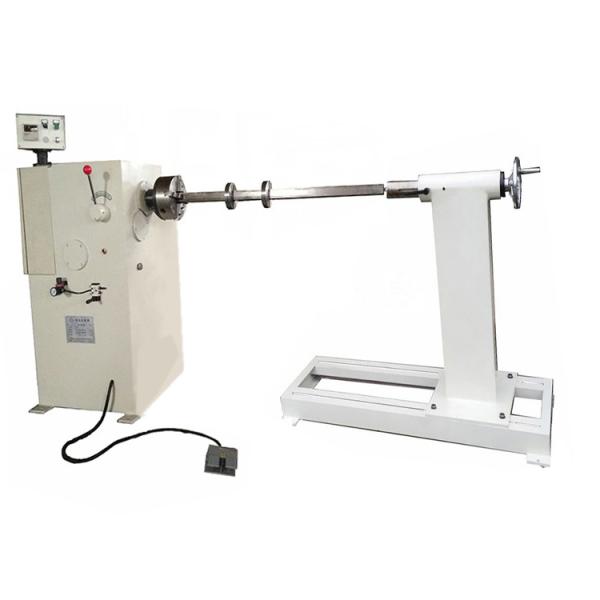

Fig 1: Transformer coil winding machine GDY-1T's full view

Fig 2: Transformer coil winding machine GDY-1T's tailstock
