Transformer Oil Tank Shell Corrugated Fin Forming Machine Equipment Automatic

Ask Lasest Price
Brand Name :	STT
Model Number :	BWX1600-400
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets per year
Delivery Time :	60 days

Add to Cart

Product Details
Company Profile

Transformer Oil Tank Shell Corrugated Fin Forming Machine Equipment Automatic

Corrugated Fin Forming Machine Automatic Transformer Oil Tank Shell Equipment

Description of corrugated fin forming machine BWX1600-400

Corrugated fin forming machine BWX1600-400 is one kind special equipment for making corrugated fins. This kind of corrugated fins can be used to make transformer oil tank and other similar products. The full set of corrugated fins forming machine is composed of fin folding machine, corrugated fin welder, hydraulic decoiler and industrial oil cooler. The steel plate is folded to corrugated fins and then being welded, then the welded fins can be used to make transformer oil tanks. The corrugated fin forming machine features high automation, easy operation and so on.

Main components of corrugated fin forming machine BWX1600-400

Corrugated fin forming machine
Welding machine
Decoiler
Oil cooler

Quick details of corrugated fin forming machine BWX1600-400

Corrugated fin forming machine
Steel plate width 300 ~ 1600mm
Steel plate thickness 0.5 ~ 1.75mm
One year warranty

Main parameters of corrugated fin forming machine BWX1600-400

Typical standard specifications of corrugated fin forming machine BWX1600-400 are shown below, however, the fin forming machine can also be manufactured as requested.

Steel Plate Width:	300 ~ 1600mm
Steel Plate Thickness:	0.5 ~ 1.75mm
Corrugated Fin Height:	50 ~ 400mm
Corrugated Fin Pitch:	45 ~ 60mm
Corrugated Fin Length	2000mm, maximum
Fin Gap (oil groove):	4mm
Corrugated Fin Front Section Length:	≥30mm
Corrugated Fin Back Section Length:	≥30mm
Molding speed:	3 ~ 4 fins/min
Total Weight:	16000KG
Floor Space:	9m x 7m
Total Motor Power:	32kw

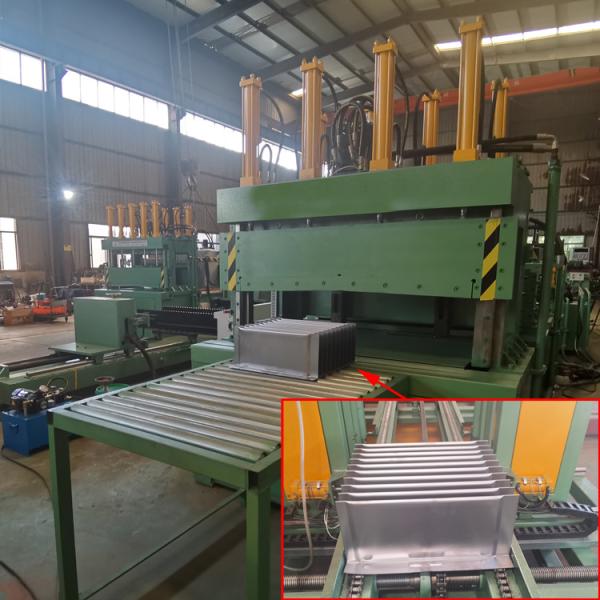

Fig 1: Corrugated fin forming machine BWX1600-400's forming unit

Fig 2: Corrugated fin forming machine BWX1600-400's welding machine
