Copper Foil Winding Machine Cold Pressure Making Reactor Coil

Ask Lasest Price
Brand Name :	STT
Model Number :	BRJ300-2-2
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets per year
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

Copper Foil Winding Machine Cold Pressure Making Reactor Coil

Copper Foil Winding Machine Cold Pressure Welding Unit Making Reactor Coil

Description of copper foil winding machine BRJ300-2-2

Copper foil winding machine BRJ300-2-2 is an automatic sheet winder. This copper foil winding machine is mainly used to wind both copper foil and aluminium foil, which can make reactor coils and other similar products. With servo motors, PLC control system and cold welding unit, the copper foil winding machine can weld different material together, such as welding aluminium foil with copper bus bar together. The copper foil winding machine can wind one or two layers of foil and it can also wind one or two layers of insulation paper at the same time. The copper foil winding machine features slow starting, smooth running, high automation, full function and easy operation etc.

Quick detail of copper foil winding machine BRJ300-2-2

Winding copper or aluminium foil
Foil material ID 500mm
Foil material OD 1000mm, maximum
Winding speed 35rpm
Winding power 5.5kw
Automatic cold welding
Servo motor driven
12 months warranty

Main components of copper foil winding machine BRJ300-2-2

Main frame
Foil decoiler
Winding unit
Insulation decoiler
Edge alignment system
Automatic cold welding unit
Pneumatic unit
Electrical control system

Technical parameters of copper foil winding machine BRJ300-2-2

Typical standard specifications of copper foil winding machine BRJ300-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

Max. Foil Width:	300mm
Finished Coil OD. ( excl. Bus bar ):	500mm
Finished Coil OD. ( incl. Bus bar ):	600mm
Conductor Foil Material:	Copper or aluminum
Cu Foil Material Thickness:	0.2 ~ 2.0mm
Al Foil Material Thickness:	0.3 ~ 3.0mm
Foil Material ID.:	Ø 500mm
Foil Material OD.:	Ø 1000mm, maximum
Conductor Decoiler Number:	2 pcs
Conductor Decoiler Length:	350mm
Conductor Decoiler Expanding Range:	Ø 420 ~ 520mm
Max Coil Weight:	700kg
Rectifying Mode:	Photoelectric sensing
Cleaning Unit Control Mode	pneumatic
Insulation Paper Decoiler Number:	2 sets
Insulation Paper Coil OD.:	Ø 400mm, maximum
Insulation Paper Coil ID.:	Ø 76mm
Insulation Decoiler Width	350mm
Insulation Paper Decoiler Shaft:	Expandable (pneumatic open/close action)
Winding Speed:	0 ~ 35 RPM
Winding Power of Servo Motor:	5.5kw
Cold Welding Device:	1 set
Counting Range:	0 ~ 9999.9

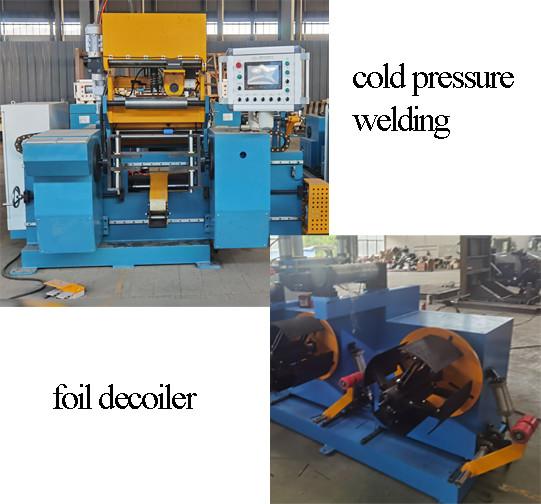

Fig 1: Copper foil winding machine BRJ300-2-2's front view

Fig 2: Copper foil winding machine BRJ300-2-2's cutter
