Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 for Reactor Coils

Description of copper foil winding machine BRJ300-2-2

Copper foil winding machine BRJ300-2-2 is one kind of reactor foil winding machines. The copper foil winding machine is equipped with servo motors, PLC control system, cold welding unit, photoelectric correction unit, foil decoiler, insulation decoiler and so on. This kind of automatic foil winder can wind both copper foil and aluminium foil, which can make reactor coils and other similar products. With the cold pressure welding unit, the copper foil winding machine can weld aluminium foil with copper bus bar together and weld copper foil and aluminium bus bar together. All parameters can be entered through the touch screen. The copper foil winding machine starts winding very slowly for safety. It is very easy to operate the copper foil winding machine.

Quick detail of copper foil winding machine BRJ300-2-2

• Winding copper or aluminium foil
• Foil material ID 500mm
• Foil material OD 1000mm, maximum
• Winding speed 35rpm
• Winding power 5.5kw
• Automatic cold welding
• Servo motor driven
• 12 months warranty

Main components of copper foil winding machine BRJ300-2-2

• Main frame
• Foil decoiler
• Winding unit
• Insulation decoiler
• Edge alignment system
• Automatic cold welding unit
• Pneumatic unit
• Electrical control system

Technical parameters of copper foil winding machine BRJ300-2-2

Typical standard specifications of copper foil winding machine BRJ300-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

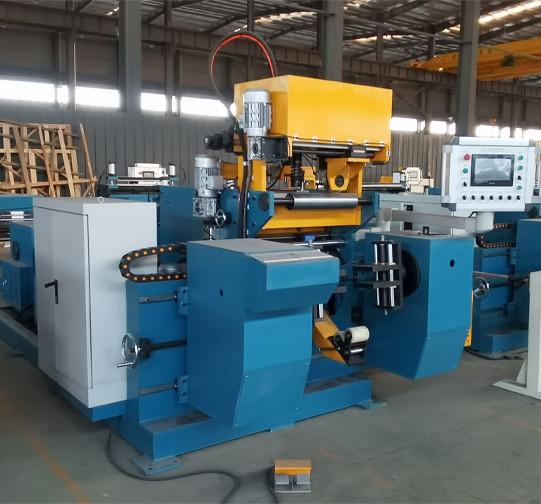

Fig 1: Copper foil winding machine BRJ300-2-2's front view

Fig 2: Copper foil winding machine BRJ300-2-2's cutter
