Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed

Ask Lasest Price
Brand Name :	STT
Model Number :	BRJ600-2
Certification :	CE, etc
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets per year
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed

Copper Foil Winding Machine: 600mm Max Width, TIG Welding, 0~26rpm Speed

Description of copper foil winding machine BRJ600-2

Copper foil winding machine BRJ600-2 is one kind of automatic transformer coil making equipment with both copper foil and aluminium foil. The copper foil winding machine is mainly used to make cast resin transformer coils or other similar products. The copper foil winding machine is with two foil decoilers and two insulation paper decoilers, which make the copper foil winding machine wind one or two layers of foil and one or two layers of insulation paper at once. The copper foil winding machine can wind the foil with maximum width 600mm. With TIG welding unit, the foil winding machine can weld foil and bus bar together. With a touch screen and PLC control system, it is very easy to operate the foil winding machine. The foil winding machine features slow starting, smooth running, big torque and so on.

Quick details of copper foil winding machine BRJ600-2

Maximum 600mm foil width
Winding both copper foil and aluminium foil
Foil conductor ID 500mm, Maximum OD 1000mm
TIG welding
Pressing roller
Customized color

Technical parameters of copper foil winding machine BRJ600-2

Typical standard specifications of copper foil winding machine BRJ600-2 are shown below, however, the machine can be manufactured as requested.

Foil width:	200 ~ 600mm
Maximum Finished Coil OD:	800mm
Finished Coil Shape:	oval, circle and rectangular,etc.
Conductor Foil Material OD.:	1,000mm, maximum
Conductor Foil Material ID.:	500mm
Foil Decoiler Number:	2 pcs
Foil Decoiler Length:	650mm
Winding Mandrel Size:	80×80×950 mm
Power:	11kw
Maximum Winding Speed:	26rpm
Welding Mode:	TIG
Insulation Decoiler Number:	2 pcs
Max. Insulation Material Width:	650mm
Insulation Decoiler Shaft:	Expandable (pneumatic open/close action)
End-fill Strip Feeder:	6 pcs
Edge Alignment System:	Photoelectric sensing
Control System:	PLC
User Interface:	10inch (254mm) touch screen
Counting Turns Range:	0 ~ 9999.9

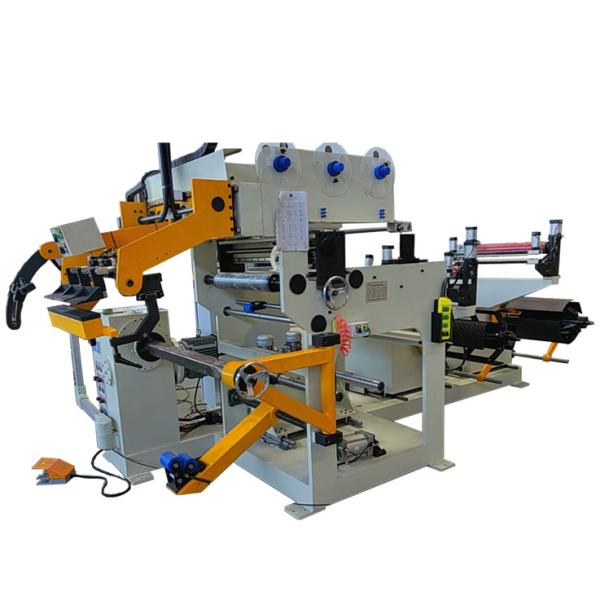

Fig 1: Copper foil winding machine BRJ600-2's front view

Fig 2: Copper foil winding machine BRJ600-2's insulation decoiler
