Cast Resin Transformer Copper Foil Winding Machine 600mm Width Strip Winder

Ask Lasest Price
Brand Name :	STT
Model Number :	BRJ600
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets per year
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

Cast Resin Transformer Copper Foil Winding Machine 600mm Width Strip Winder

Cast Resin Transformer Copper Foil Winding Machine 600mm Width Strip Winder

Description of copper foil winding machine

Cast resin transformer copper foil winding machine 600mm width strip winder BRJ600 is used to wind transformer copper foil coil with maximum width 600mm. The kind of copper foil winding machine can wind one layer of copper foil or aluminium foil and one or two layer of insulation paper. The copper foil winding machine is with TIG welding machine and cooler, which can be used to wind copper foil with bus bar together. With control system based on PLC, the copper foil winding machine is with high automation and operated easily.

Quick Detail of copper foil winding machine

TIG welding
Pneumatic foil deburring
Pneumatic foil cleaning
Expanding mandrel
Pressing roller
Customized color

Technical Parameters of copper foil winding machine

Typical standard specifications of copper foil winding machine BRJ600 are shown below, however these can be easily modified as requested.

Max. OD. of Finished Coil:	800mm
Finished Coil Shape:	oval, circle and rectangular,etc.
Conductor Foil Material OD.:	1,000mm
Conductor Foil Material ID.:	500mm
Number of Foil Decoiler:	1 pc
Length of Foil Decoiler:	650mm
Foil Decoiler Shaft:	adjustable Dia. range 400-520mm
Winding Mandrel Size:	80×80×950 mm
Welding Mode:	TIG
Welding Speed:	0.8 m/min
Insulation Decoiler Number:	2 pcs
Insulation Material OD.:	≤400mm
Insulation Material ID.:	76mm
Max. Insulation Material Width:	650mm
Insulation Decoiler Shaft:	Expandable (pneumatic open/close action)
End-fill Strip Feeder:	6 pcs
Edge Alignment System:	Photoelectric sensing automatic rectifying deviation
Rectification Precision:	±0.5mm
Electronic Control System:	PLC
User Interface:	10inch (254mm) touch screen industrial PC / access controller
Counting Turns Range:	0 - 9999.9

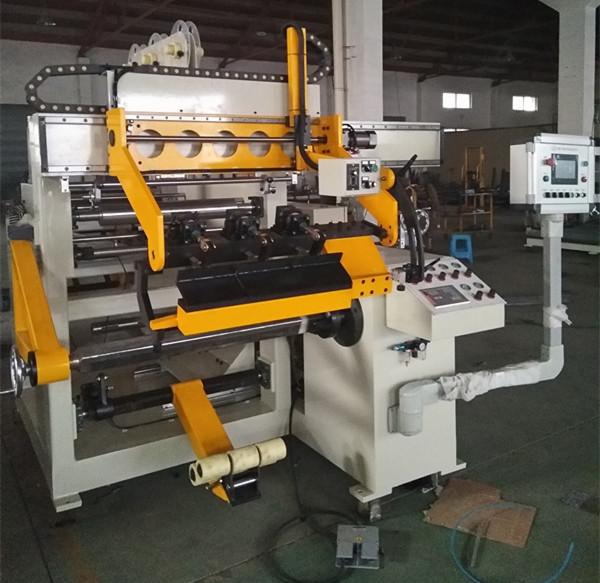

Fig 1: Copper foil winding machine BRJ600's front view

Fig 2: Copper foil winding machine BRJ600's back view
