Programmable Automatic Cast Resin Transformer Winder Machine With TIG

Ask Lasest Price
Brand Name :	STT
Model Number :	BRJ600-2
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets per year
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

Programmable Automatic Cast Resin Transformer Winder Machine With TIG

Programmable Automatic Cast Resin Transformer Foil Winding Machine With TIG

Quick details of transformer foil winding machine BRJ600-2

Maximum foil width 600mm
Foil material ID 500mm
Foil material OD 1000mm
Winding speed 26rpm
Winding power 11kw
Automatic TIG welding
Two foil decoilers
One year warranty

Description of transformer foil winding machine BRJ600-2

Programmable Automatic Cast Resin Transformer Foil Winding Machine BRJ600-2 is mainly used to wind transformer foil coil and other similar products. The transformer foil winding machine can be used to wind copper or aluminium strip. The transformer foil winding machine is provided with pneumatic brake system for foil decoilers and insulation decoiler to provide tension to make sure the coil can be wound tightly when winding. With photoelectric sensors, the transformer foil winding machine can correct the position of foil, which can make the foil edge neat when winding. HMI makes sure the operating easy and intuitive.

Main parameters of transformer foil winding machine BRJ600-2

Coil Shape:	oval, circle and rectangular
Conductor Foil Material OD.:	1,000mm
Conductor Foil Material ID.:	500mm
Number of Conductor Decoiler:	2 pcs
Length of Conductor Decoiler:	650mm
Conductor Decoiler Expanding Range:	adjustable Dia. range 400-520mm
Winding Power:	11KW
Winding Shaft Size:	80×80×950 mm
Max. Winding Speed:	26 Rpm
Insulation Decoiler:	2 pcs
Insulation Material OD.:	≤400mm
Insulation Material ID.:	76mm
Insulation Paper Width:	650mm
End-fill Strip Feeder:	6 pcs
Edge Alignment System:	Photoelectric sensing automatic rectifying deviation
Rectification Precision:	±0.5mm
User Interface:	10inch (254mm) touch screen industrial PC / access controller
Counting Turns Range:	0 - 9999.9

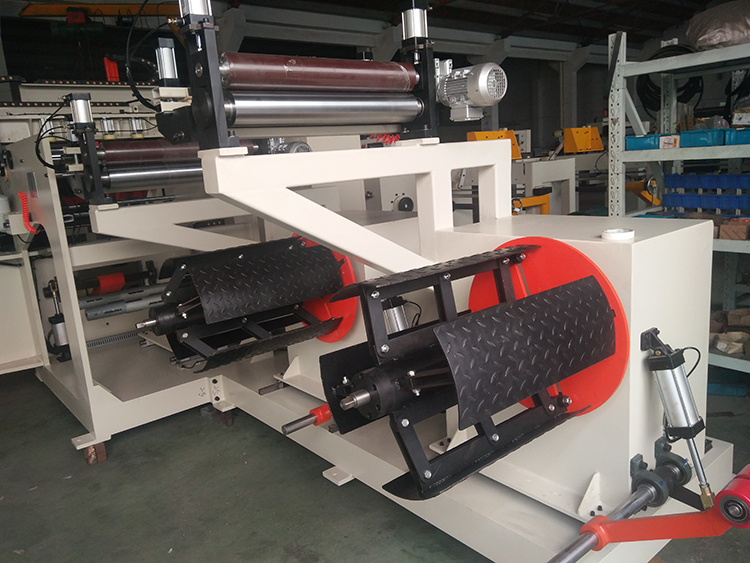

Fig 1: Transformer foil winding machine BRJ600-2's front view

Fig 2 :Transformer foil winding machine BRJ600-2
