Unicore Cutting Machine Making Transformer C Shaped Core

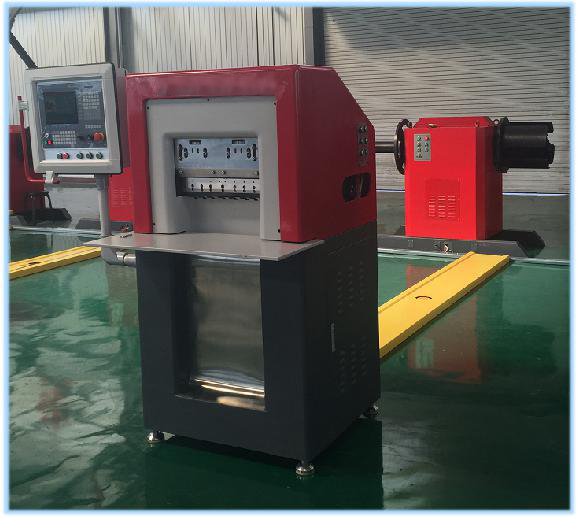

Description of unicore cutting machine UCM400

Unicore cutting machine UCM400 is a special equipment for cutting C shaped core for transformer. This kind of core can be used in oil type transformer, dry type transformer, and traction transformer, etc. The unicore cutting machine has the function of speed regulation and the speed can be adjusted. The unicore cutting machine is provided with perfect software, servo drive control of the cutter and fold mechanisms.

Quick details of unicore cutting machine UCM400

• Suitable for making oil, dry, traction transformer
• Two heads decoiler
• Single set silicon steel sheet width ≤400mm
• Double sets silicon steel sheet width ≤190mm
• Air pressure 1 Mpa
• One year warranty

Main Components of unicore cutting machine UCM400

• Cylinder
• Bearings
• Linear guide,
• Linear bearing etc.
• Decoiler
• Touch screen

Main parameters of unicore cutting machine UCM400

Typical standard specifications of UCM400 are shown below, however the cutting machine can also be manufactured as requested.
