Cutting Silicon Steel Strip Automatic Core Cutting Machine Adjusting Hole

Cutting Silicon Steel Strip Automatic Core Cutting Machine Adjusting Hole

Description of automatic core cutting machine DHJ400

Automatic adjusting hole position and core cutting machine DHJ400 is a professional equipment for cutting silicon steel strip for making reactor core. The automatic core cutting machine adopts a sophisticated control technology to make the machine with high automatic and high accuracy. The automatic core cutting machine features high speed, low noise and long live. A touch screen is adopted to make the operation easier and intuitive.

Quick details of automatic core cutting machine DHJ400

Sheet thickness 0.23 ~ 0.5mm
Sheet width 25 ~ 400mm
Cutting sheet length 10 ~ 9999mm
Feeding sheet speed 180m/min
Power 12.5kw
One year warranty

Main parameters of automatic core cutting machine DHJ400

Typical standard specifications of core cutting machine DRHJ400 are shown below, however the core cutting machine can also be manufactured as requested.

1	Working Platform Height:	900mm
2	Decoiler:	Hydraulic expanding
3	Decoiler Expanding Range:	470 ~ 508mm
4	Sheet Thickness:	0.23 ~ 0.35mm
5	Sheet Width:	40 ~ 400mm
6	Cutting Sheet Length:	10 ~ 9999mm
7	Feeding Sheet Speed:	180m/min
8	Feeding Tolerance:	±0.05mm/m
9	Height of Burr After Cutting:	Less than 0.02mm
10	Motor Power:	12.5kw

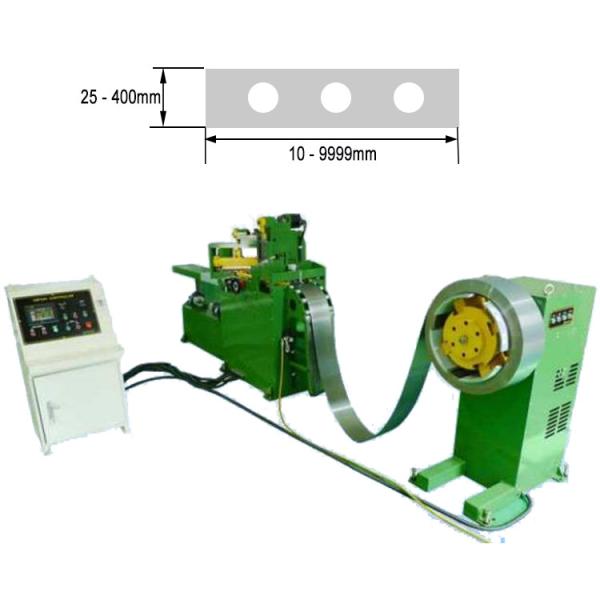

Fig 1: Core cutting machine DHJ400's full view

Fig 2: Core cutting machine DHJ400's decoiler
