One Layer 1400 mm Width Copper Foil Strip Winder Dry Type
Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1400
Transformer foil winding machine BRJ1400 is mainly used to wind low
voltage dry type transformer foil coils and other similar products.
The foil conductor can be copper or aluminum strip. This kind of
transformer foil winding machine, i.e. Máquina de bobinado de
láminas de aluminio, can handle one layer of foil conductor and one
or two layers of insulation material, such as paper or similar
material. The transformer foil winding machine can be used to wind
the foil with maximum width 1400mm. With TIG unit, the transformer
foil winding machine can weld foil with bus bar together. The
automatic foil edge alignment makes sure that the coil edges are
straight and smooth when winding. With PLC control system, it is
easy to operate the transformer foil winding machine through a
touch screen.
Main components of transformer foil winding machine BRJ1400
1. Main frame
2. Winding unit
3. Foil decoiler
4. Insulation decoiler
5. End-filling strip feeder
6. Cleaning system
7. Cutting system
8. Foil deburring system
9. Edge alignment system
10. Automatic welding unit
11. Electronic control system
12. Pneumatic system
Technical parameters of transformer foil winding machine BRJ1400
Typical standard specifications of transformer foil winding machine
BRJ1400 are shown below, however, the transformer foil winding
machine can also be manufactured as requested.
| Axial Length (foil width): | 1,400mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular,etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Conductor Material OD.: | Ø1,000mm, maximum |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Number: | 1 pc |
| Foil Decoiler Diameter: | adjustable range Ø400 ~ 520mm |
| Max. Coil Weight: | 1,500KG |
| Winding Mandrel Size: | 80×80×1750 mm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | Ø400mm |
| Insulation Material ID.: | Ø76mm |
| End-filling Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Electronic Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Total Weight: | 7000Kg |
| Dimension(LxWxH): | 4500 x 2850 x 2500mm |

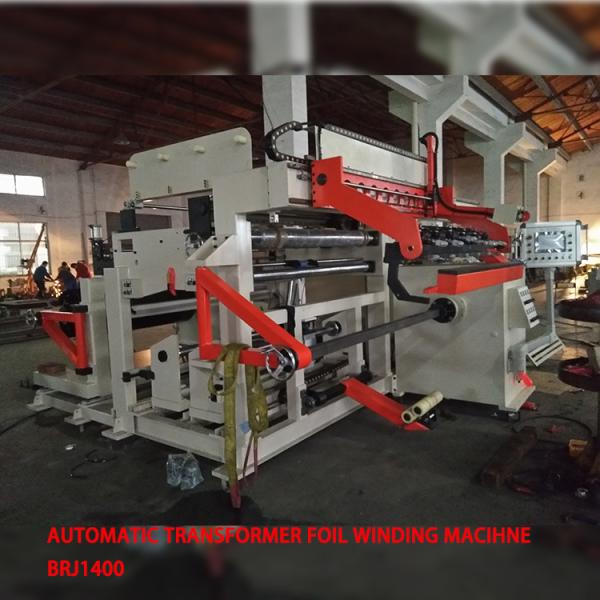

Fig 1: Transformer foil winding machine BRJ1400's front view
Fig 2: Transformer foil winding machine BRJ1400's back view
