Copper Foil Winding Machine Making Reacotr Coil

Ask Lasest Price
Brand Name :	STT
Model Number :	BRJ300-2-2
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets per year
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

Copper Foil Winding Machine Making Reacotr Coil

Folienwickelmaschine Copper Foil Winding Machine Making Reacotr Coil

Description of copper foil winding machine BRJ300-2-2

Copper foil winding machine BRJ300-2-2 is a dedicated equipment for winding reactor foil coils and other similar products. The kind of copper foil winding machine is provided with cold welding, which can weld different kinds of material together, such as copper foil and aluminium bus bar and aluminium foil and copper bus bar. With PLC control system, the copper foil winding machine can run automatically as per the parameters input. The copper foil winding machine features slow starting, smooth running, high automation, full function, etc.

Main components of copper foil winding machine BRJ300-2-2

1. Main frame

2. Foil decoiler

3. Pressing roller

4. Winding unit

5. Insulation decoiler

6. Edge alignment system

7. Automatic cold welding unit

8. Pneumatic unit

9. Electrical control system

Technical parameters of copper foil winding machine BRJ300-2-2

Typical standard specifications of copper foil winding machine BRJ300-2-2 are shown below, however the copper foil winding machine can be manufactured as requested.

Max. Foil Width:	300mm
Finished Coil OD. :	Ø600mm
Coil Shape:	Circle, Oval and Rectangle etc.
Conductor Foil Material:	Copper or aluminum
Cu Foil Material Thickness:	0.2 ~ 2.0mm
Al Foil Material Thickness:	0.3 ~ 3.0mm
Foil Material ID.:	Ø500mm
Foil Material OD.:	Ø1000mm, maximum
Foil Decoiler Number:	2 pcs
Foil Decoiler Length:	350mm
Foil Decoiler Expanding Range:	Ø420 ~ 520mm
Max Coil Weight:	1000kg
Rectifying Mode:	Photoelectric sensing
Rectifying Deviation Precision:	±0.5mm
Cleaning Unit Control Mode	pneumatic
Insulation Paper Decoiler Number:	1set
Insulation Paper Coil OD.:	Ø400mm maximum
Insulation Paper Coil ID.:	Ø76mm
Insulation Decoiler Width	350mm
Insulation Paper Decoiler Shaft:	Expandable (pneumatic open/close action)
Winding Speed:	0 ~ 35 RPM
Winding Power of Servo Motor:	5.5kw
Cold Welding Device:	1 set
Positioning Bus Bar Device:	1set
Electric Grinding Device:	1 set
Cold Welding Mould:	6 sets
Counting Turn Range:	0 ~ 9999.9

Fig 1: Copper foil winding machine BRJ300-2-2's front view

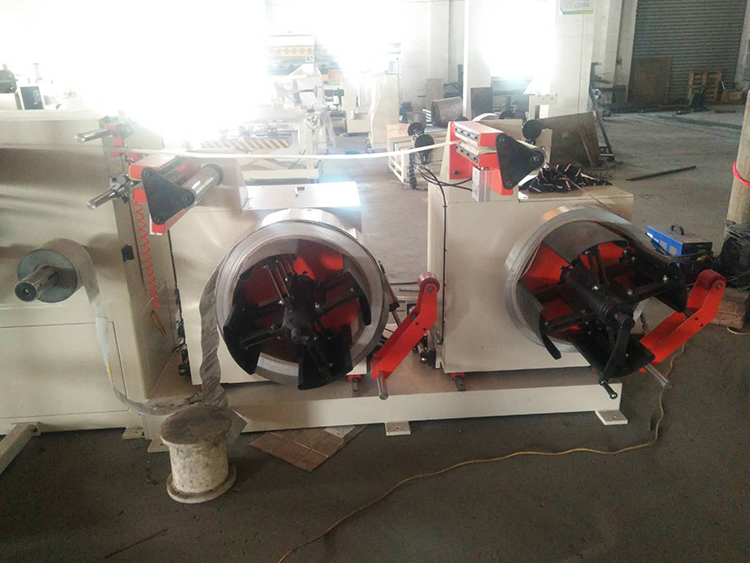

Fig 2: Copper foil winding machine BRJ300-2-2's foil decoilers
