Low Voltage Transformer Foil Winding Machine Winding Copper Foil
And Aluminium Foil
Description of transformer foil winding machine BRJ800-2
Transformer foil winding machine BRJ800-2 is a special winding
equipment for winding copper or aluminium foil to make cast resin
transformer coil. The kind of transformer foil winding machine is
provided with 15kw motor, which provides big torque to wind one or
two layers of foil with maximum width 800mm. With TIG welding, the
foil winding machine can weld foil and bus bar together. The
parameters of the wound coil can be input through a touch screen.
The transformer foil winding machine features slow starting, smooth
running, high automation, full function, strong pulling force, easy
operation and so on.
Quick details of transformer foil winding machine BRJ800-2
1) Two foil decoilers
2) Two insulation paper decoilers
4) End-fill strip feeders
5) Cleaning system
6) Deburring system
7) Edge alignment system
8) Automatic welding unit
Technical parameters of transformer foil winding machine BRJ800-2
Typical standard specifications of transformer foil winding machine
BRJ800-2 are shown below, however the machine can also be
manufactured as requested.
| Foil Width: | 200 ~ 800mm |
| Finished Coil Shape: | oval, circle and rectangle |
| Supply Material OD.: | 1,000mm |
| Supply Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 850mm |
| Foil Decoiler Expansion Range: | 420 ~ 520mm |
| Winding Shaft Size: | 80×80×1150 mm |
| Cutter: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | 400mm |
| Insulation Material ID.: | 75mm |
| Max. Insulation Material Width: | 850mm |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |

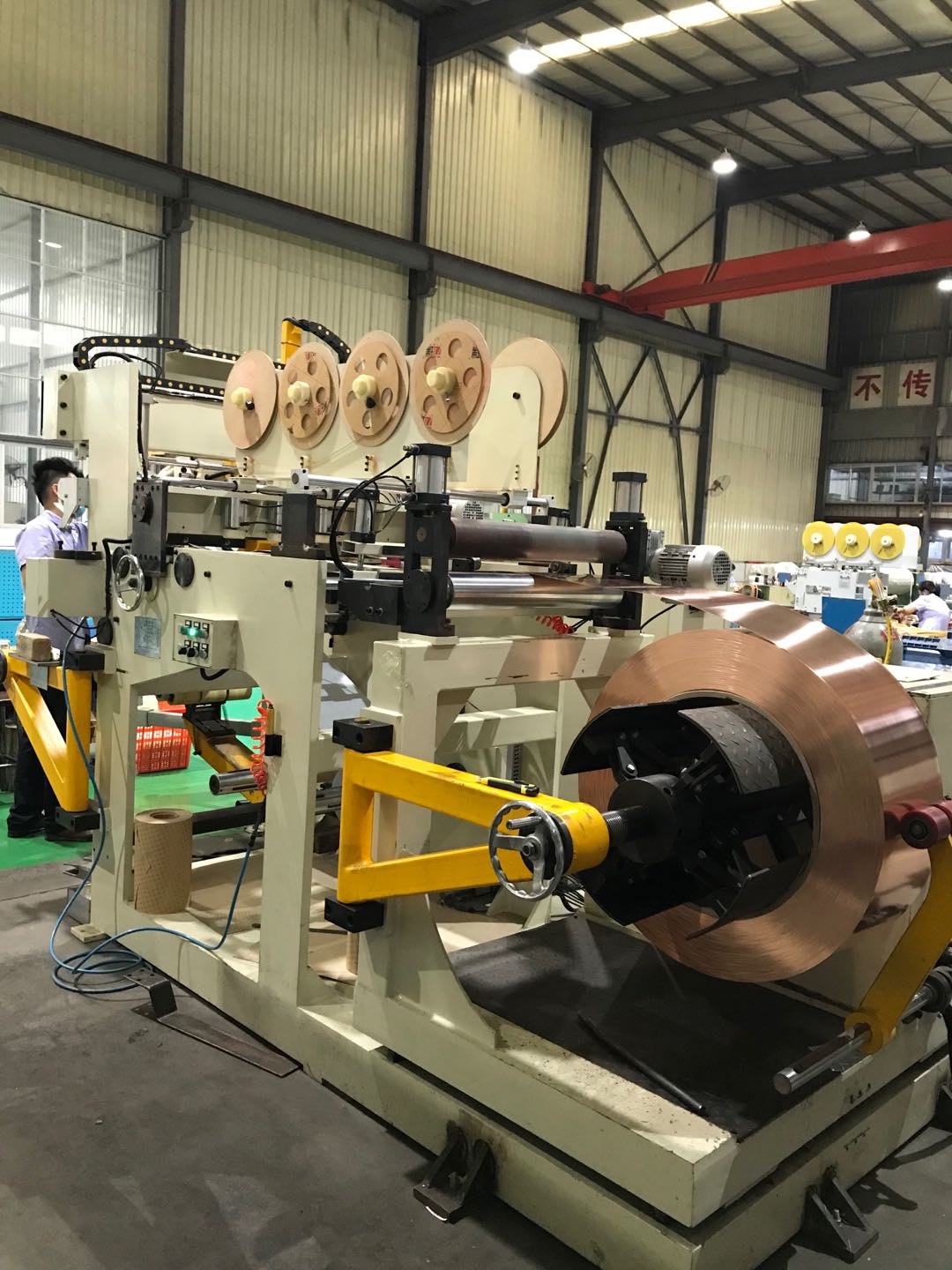

Fig 1: Transformer foil winding machine BRJ800-2's front view

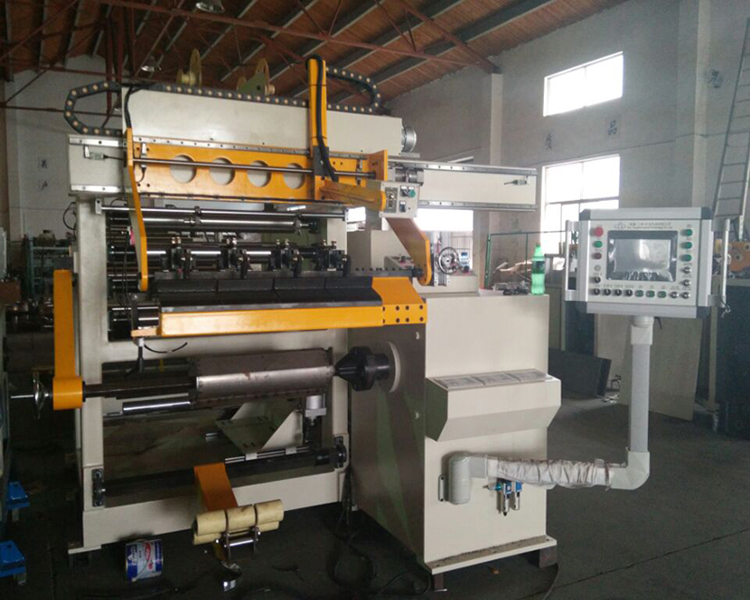

Fig 2: Transformer foil winding machine BRJ800-2's back view
