Transformer Making Equipment Wire Winder Automatic Coil Winding Machine

Transformer Making Equipment Wire Winder Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX1200

Automatic coil winding machine ZPX1200 is a professional transformer making equipment, which is mainly used to wind different sizes of copper or aluminium wire to make wire coils. These wound coils can be used in transformers or other similar products. With a wire guide driven by a servo motor, the coil winding machine can lay the wire automatically. With HMI and PLC control system, the automatic coil winding machine features high automation and easy operation, etc.

Features of automatic coil winding machine ZPX1200

slow starting
smooth running
optional color
big power
high automation
12 months warranty

Main Parameters of automatic coil winding machine ZPX1200

The following is the standard specifications of automatic coil winding machine ZPX1200 and the machine can also be manufactured as requested.

Center Height From Floor:	900mm
Winding Square Shaft Size:	50x50x1500mm
Maximum Winding Width:	1200mm
Winding Power:	5.5kw
Winding Speed:	0 ~ 160 rpm
Regulation:	stepless speed regulation
Max. Flat Wire Size:	5X12mm
Round Wire Diameter:	Φ0.3mm ~ Φ5.0mm
Maximum wound Coil OD.:	Φ800mm
Maximum Capacity:	800kg
Counting Mode:	5-digit counting
Max. Numbers of Turns Preset:	9999.9
Counting Turn Range:	0 ~ 9999.9

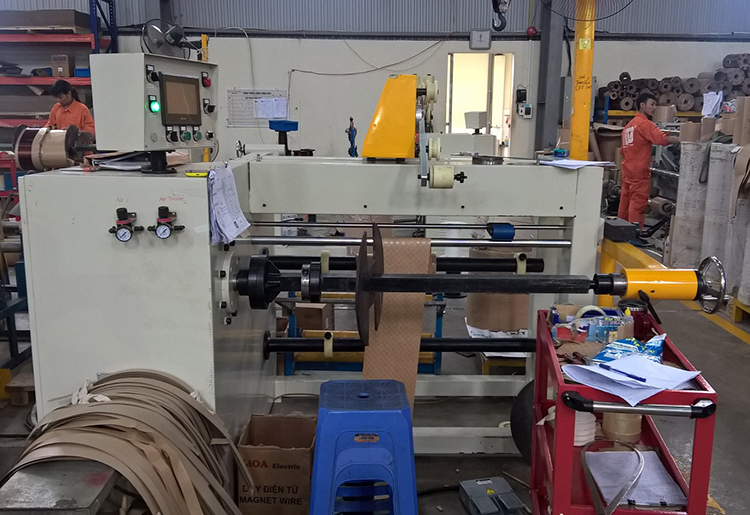

Fig 1: Automatic coil winding machine ZPX1200's front view

Fig 2: Automatic coil winding macihne ZPX1200's side view
