Copper Foil Winder Low Voltage Transformer Foil Winding Machine

Copper Foil Winder Low Voltage Transformer Foil Winding Machine

Description of transformer foil winding machine BRJ1400-2

Transformer foil winding machine BRJ1400-2 is a special foil winding equipment for winding cast resin transformer coil. The transformer foil winding machine can wind both copper foil and aluminium foil. With two foil decoilers and two insulation paper decoilers, the foil winding machine can handle one or two layers of foil and handle one or two layers of insulation paper at once. The transformer foil winding machine is provided with TIG welding unit for welding foil and bus bar together. The control system of the foil winding machine is based on PLC. The transformer foil winding machine features easy operation and so on.

Main components of transformer foil winding machine BRJ1400-2

1. Main frame

2. Winding unit

3. Foil decoiler

4. Insulation decoiler

5. End-filling strip feeder

6. Cleaning system

7. Cutting system

8. Foil deburring system

9. Edge alignment system

10. Automatic welding unit

11. Electronic control system

12. Pneumatic system

Technical parameters of transformer foil winding machine BRJ1400-2

Typical standard specifications of transformer foil winding machine BRJ1400-2 are shown below and the transformer foil winding machine can also be manufactured as requested.

Maximum Foil Width:	1,400mm
Max. Finished Coil OD.:	1,000mm
Finished Coil Shape:	oval, round and rectangular
Conductor Foil Material:	Copper or Aluminum
Maximum Conductor Material OD.:	Φ1,000mm
Conductor Material ID.:	Φ500mm
Foil Decoiler Number:	2 pcs
Foil Decoiler Expanding Range:	Φ480 ~ 520mm
Max. Coil Weight:	2,500KG
Welding Mode:	TIG
Cutting Mode:	Electric disc shear
Insulation Decoiler Number:	2 pcs
Max. Insulation Material OD.:	Φ400mm
Insulation Material ID.:	Φ76mm
End-filling Strip Feeder:	8 pcs
Edge Alignment System:	Photoelectric sensing
Control System:	PLC
Counting Range:	0 - 9999.9

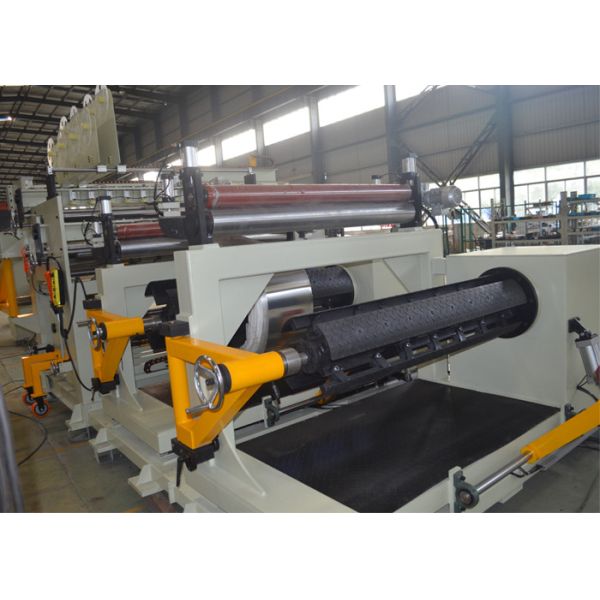

Fig 1: Transformer foil winding machine BRJ1400-2's front view

Fig 2: Transformer foil winding machine BRJ1400-2's back view
