Foil Sheet Winder Transformer Copper Foil Winding Machine

Ask Lasest Price
Brand Name :	STT
Model Number :	BRJ700
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets per year
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

Foil Sheet Winder Transformer Copper Foil Winding Machine

Foil Sheet Winder Transformer Copper Foil Winding Machine

Description of copper foil winding machine BRJ700

Copper foil winding machine BRJ700 is a professional conductor foil winder. The foil winding machine is mainly used to wind copper foil or aluminium foil to make foil coils. This kind of wound foil coil can be used to make cast resin transformers and other similar products. With one set of foil decoiler, the copper foil winding machine can wind one layer of copper foil or aluminium foil. With two insulation decoilers, the copper foil winding machine can wind one or two layers of insulation paper. The copper foil winding machine is provided with a set of TIG welding unit. With the TIG welding unit, the copper foil winding machine can weld foil with bus bar together. The copper foil winding machine is also provided with PLC and HMI. The copper foil winding machine feautres slow starting, smooth running, easy operation and so on.

Quick detail of copper foil winding machine BRJ700

Winding foil with maximum 700mm width
Winding both copper foil and aluminium foil
Conductor foil with ID 500mm and OD 1000mm maximum
TIG welding
Pressing roller
Customized color

Technical Parameters of copper foil winding machine BRJ700

Typical standard specifications of copper foil winding machine BRJ700 are shown below and the copper foil winding machine can also be manufactured as requested.

Foil width:	200 ~ 700mm
Max. Finished Coil OD:	Ø800mm
Finished Coil Shape:	oval, circle and rectangular,etc.
Conductor Foil Material OD.:	Ø1,000mm, maximum
Conductor Foil Material ID.:	Ø500mm
Foil Decoiler Number:	1 pc
Foil Decoiler Length:	750mm
Winding Shaft Size:	80×80×1050 mm
Welding Mode:	TIG
Insulation Decoiler Number:	2 sets
Insulation Decoiler Shaft:	Expandable (pneumatic open/close action)
End-fill Strip Feeder:	6 pcs
Edge Alignment System:	Photoelectric sensing
Control System:	PLC
User Interface:	10inch (254mm) touch screen
Counting Range:	0 - 9999.9

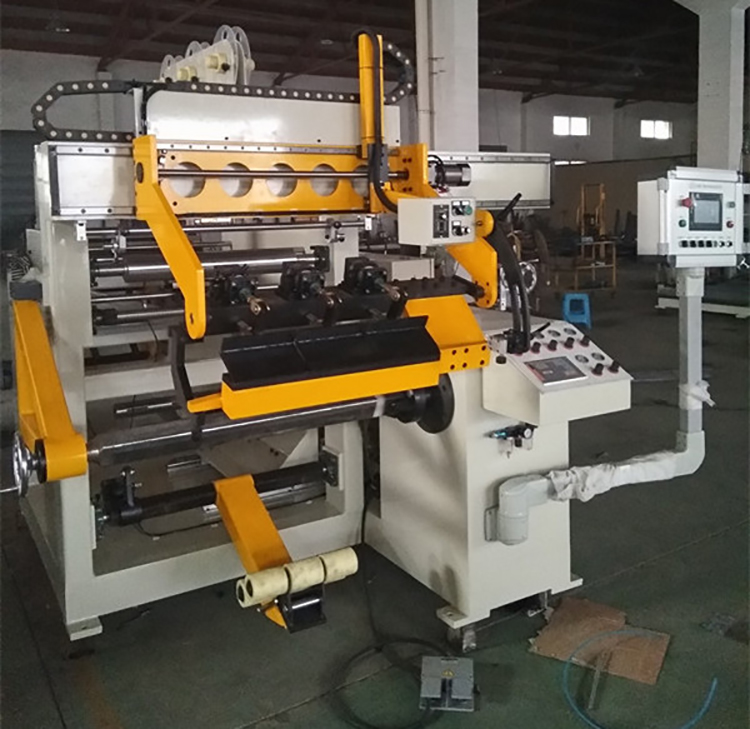

Fig 1: Copper foil winding machine BRJ600's front view

Fig 2: Copper foil winding machine BRJ600's back view
