Factory Direct Sales Silicon Steel Slitter Core Slitting Machine


Description of core slitting machine ZJX1250

Core slitting machine ZJX1250 is a professional cutter for slitting silicon steel sheet. The core slitting machine can be used to slit different widths of silicon steel strips. The maximum width of the slit silicon steel can be 1200mm. The slit strips can be used to make transformer core’s legs and yokes or other similar products. The core slitting machine is provided with 6 sets of cutters, that is to say, the core slitting machine can slit five pieces of strips at one time. Moreover, if needing, cutters can be added to slit more strips at one time. The slitting machine features easy operation and so on.


Quick details of core slitting machine ZJX1250:

• Decoiler expanding range Ø470 ~ 520mm
• Cutting width 500 ~ 1250 mm
• Cutting thickness 0.15 ~ 0.6mm
• Cutter 6 sets
• Feeding speed 120m/min
• Power 46kw
• One year warranty

Main components of core slitting machine ZJX1250

1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console

Main parameters of core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.

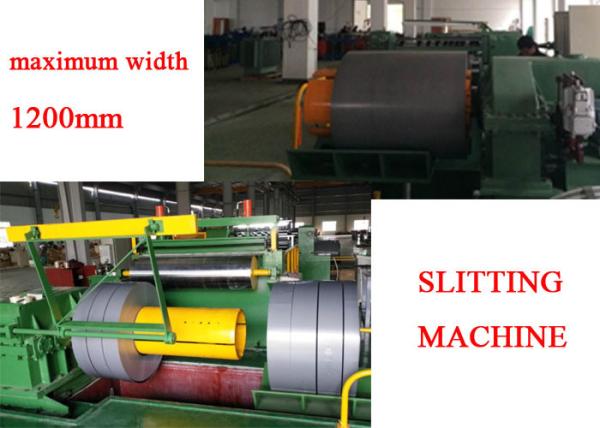

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
