Advanced Film Foil Machine Copper Foil Winding Machine

Ask Lasest Price
Brand Name :	STT
Model Number :	BRJ800-2
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, L/C
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

Advanced Film Foil Machine Copper Foil Winding Machine

Film Foil Machine Copper Foil Winding Machine

Description of copper foil winding machine BRJ800-2

Copper foil winding machine is a kind of professional foil conductor winder, which is mainly used to wind different sizes of foil coils. These wound foil coils can be used in cast resin transformers and other similar products. With two foil decoilers and two insulation decoilers, this kind of copper foil winding machine can wind one or two layers of copper foil or aluminium foil and one or two layers of insulation paper at once. The copper foil winding machine is provided with TIG welding unit for welding foil and bus bar together. With a touch screen and PLC control system, the copper foil winding machine can be operated easily. The foot pedal can be used to run and stop the machine and switching the rotating direction can also be achieved through the foot pedal.

Quick details of copper foil winding machine BRJ800-2

Maximum foil width 800mm
Winding copper or aluminium foil
Foil conductor ID 500mm, OD 1000mm
TIG welding
Pressing roller
Machine’s color can be optional

Technical parameters of copper foil winding machine BRJ800-2

Typical standard specifications of copper foil winding machine BRJ800-2 are shown below and the machine can also be manufactured as requested.

Foil width:	200 ~ 800mm
Max. OD. of Wound Coil:	800mm
Wound Coil Shape:	oval, circle and rectangular,etc.
Conductor Foil Material OD.:	1,000mm
Conductor Foil Material ID.:	500mm
Foil Decoiler Number:	2 pcs
Foil Decoiler Length:	850mm
Foil Decoiler Diameter:	Adjustable range 400-520mm
Winding Mandrel Size:	80×80×1150 mm
Welding Mode:	TIG
Insulation Decoiler Number:	2 pcs
Max. Insulation Material Width:	850mm
Insulation Decoiler Shaft:	Expandable (pneumatic open/close action)
End-fill Strip Feeder:	6 pcs
Edge Alignment System:	Photoelectric sensing
Control System:	PLC
User Interface:	10inch (254mm) touch screen
Counting Turns Range:	0 - 9999.9

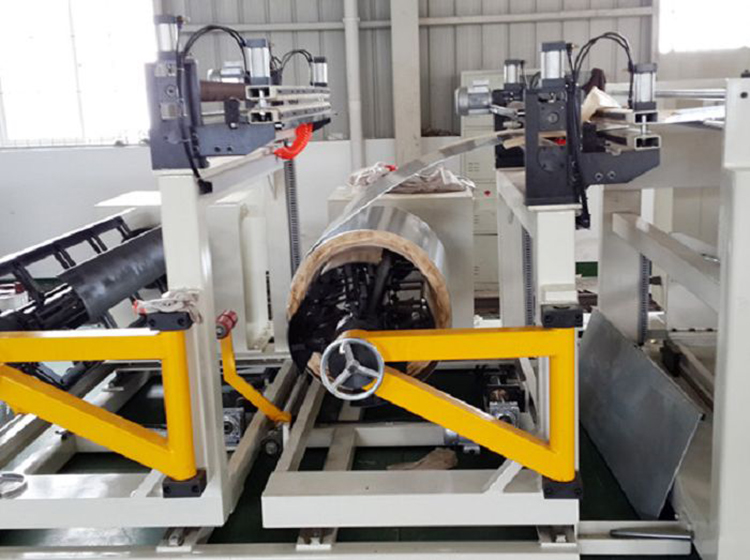

Fig 1: Copper foil winding machine BRJ800-2's front view

Fig 2: Copper foil winding machine BRJ800-2's foil decoiler
