Three Coil Winder Equipment Automatic Coil Winding Machine

Three Coil Winder Equipment Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX150-3

Automatic coil winding machine ZPX150-3 is one kind of high effective wire coil winder. The automatic woil winding machine is provided with a wire guide driven by servo motor, which make the coil winding machine wind wire automatically. With three sets of wire guide unit, the automatic coil winding machine can wind three coils at once. With PLC control system and HMI, the automatic coil winding machine features high automation and easy operation, etc.

Main components of automatic coil winding machine ZPX150-3

1. Main steel frame, it is welded with steel

2. Main winding unit, including winding motor and winding shaft

3. Automatic wire laying unit, driven by 750w servo motor

4. PLC based control system,

5. Pneumatic system

6. Servo motor

7. Foot pedal

Technical parameters of automatic coil winding machine ZPX150-3

Typical standard specifications of automatic coil winding machine ZPX150-3 are shown below and the coil winding machine can also be manufactured as requested.

Center Height:	900 mm
Square Shaft Size:	40x40mm
Round Wire Diameter:	Ø0.3-4.0 mm
Max. Flat Wire Size:	3x8 mm
Finished Coil ID.:	Depends on your mold (shaft size 40*40 mm)
Max. Finished Coil OD.:	Ø400 mm
Max. Each Coil Length:	150 mm
Winding Motor Power:	4kw
Winding Speed:	0 ~ 200 rpm
Winding Speed Regulation:	Variable frequency and stepless speed regulation
Control system:	PLC
Spread Pitch:	Min. step: 0.01 mm
Counting Mode:	5-digit counting
Max. Turns Number Preset:	9999.9

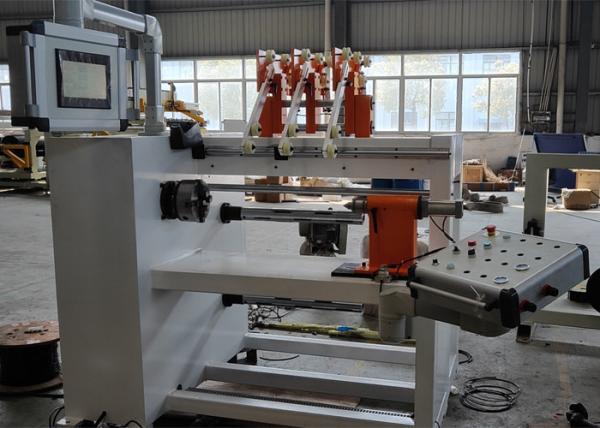

Fig 1: Automatic coil winding machine ZPX150-3's full view

Fig 2: Automatic coil winding machine ZPX150-3's wire guide
