Two Decoilers Foil Winder Automatic Copper Foil Winding Machine

Ask Lasest Price
Brand Name :	STT
Model Number :	BRJ300-2
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets per year
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

Two Decoilers Foil Winder Automatic Copper Foil Winding Machine

Two Decoilers Foil Winder Automatic Copper Foil Winding Machine

Description of foil winding machine BRJ300-2

Copper foil winding machine BRJ300-2 is a special conductor foil winder for winding dry transformer coils. The foil winding machine can wind both copper foils and aluminium foils. With TIG welding unit, the copper foil winding machine can weld foil and busbar together. With two foil decoilers and two insulation decoilers, the copper foil winding machine can wind one or two layers of foils and wind one or two layers of insulation paper at once. The copper foil winding machine is provided with PLC control system and HMI, which make the copper foil winding machine be operated easily.

Main components of copper foil winding machine BRJ300-2

1. Main steel welded frame

2. Two foil decoilers

3. Two foil feeder

4. Pressing roller

5. Winding unit

6. PLC based control system

7. Pneumatic system

8. TIG welding unit

Technical parameters of copper foil winding machine BRJ300-2

Typical standard specifications of copper foil winding machine BRJ300-2 are shown below and the copper foil winding machine can also be manufactured as requested.

Foil width:	100 ~ 300mm
Finished Coil Shape:	Oval, circle and rectangular
Conductor Foil Material:	Copper or Aluminum
Al Foil Thickness:	0.3 ~ 3.0 mm
Cu Foil Thickness:	0.2 ~ 2.0 mm
Foil Decoiler:	2 pcs
Foil Decoiler Length:	350 mm
Foil Decoiler Diameter Range:	Ø400 ~ 520mm
Maximum Coil Weight:	750 KG
Pressing Roller:	2 set
Adjusting Speed Mode:	Stepless adjustable
Rotating Speed:	0 ~ 35 rpm
Winding Power:	5.5KW
Insulation Decoiler Number:	2 pcs
Insulation Decoiler Length:	350mm
Insulation Decoiler Shaft:	Expandable (pneumatic open/close action)
Programming Type:	PLC
Touch Screen:	10inch (254mm)
Counting Range:	0 ~ 9999.9

Fig 1: Copper foil winding machine BRJ300-2's front view

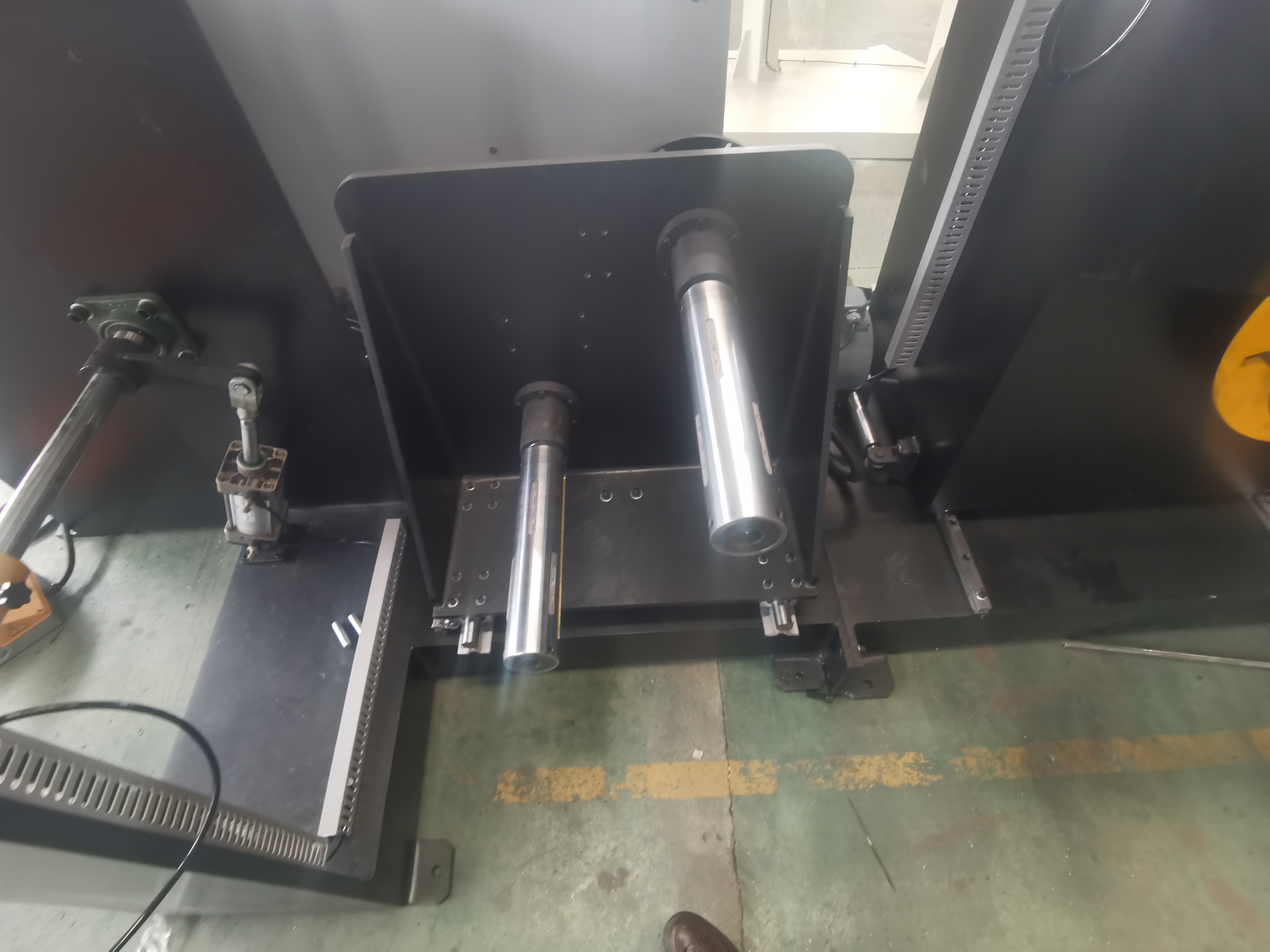

Fig 2: Copper foil winding machine BRJ300-2's insulation decoiler
